[PRCo] Re: Lisbon in the 1990s

[Bill Robb]

Lisbon is 900mm which is 2 feet 11 7/16 inches.  As a horse car system Lisbon
was 1435mm (standard gauge) which was fine for the horse cars, but it was also
fine for omnibus operators who rode along the tracks, delayed the horse cars and
wore the rails.  So the gauge was changed.
Some photos from June-July 1983 that might make you cry.

http://philteu-trams.fotopic.net/c217595.html

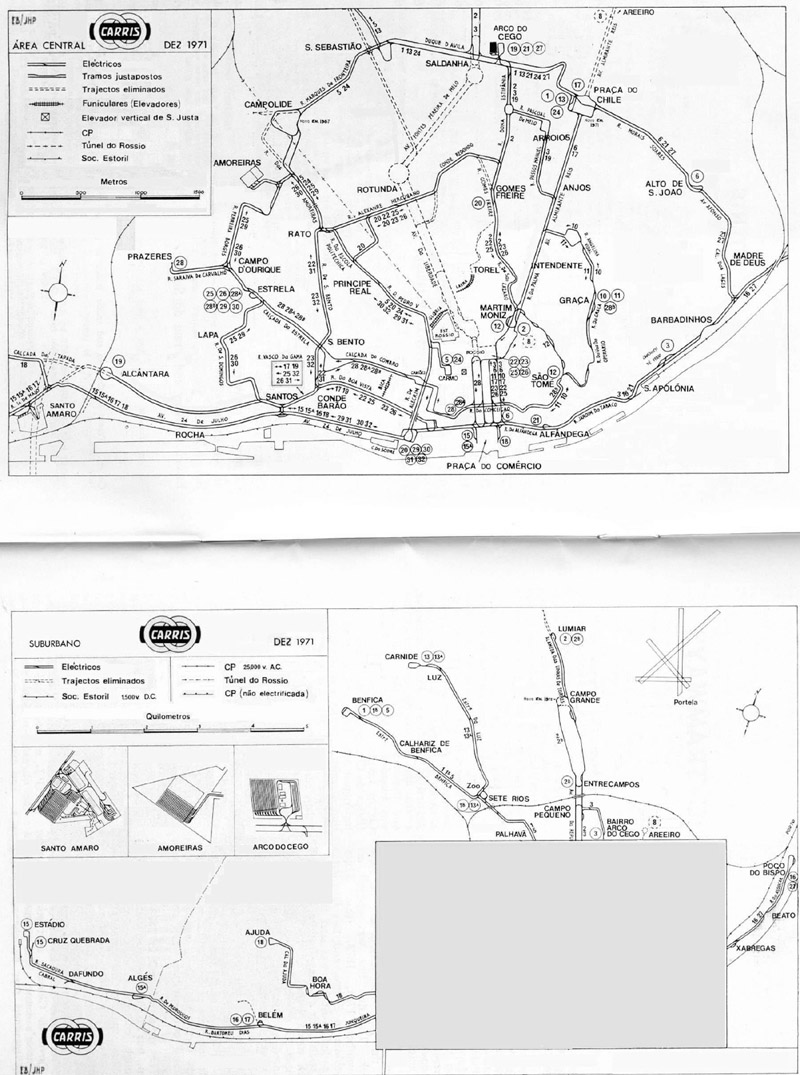

A track map from December 1971.

http://www.encarnado.com/ssc/ssc_rede_carris_1971.jpg

Bill


I think its meter gauge.  But I have trouble separating meter from 900 mm.  The
difference is only about 4 inches.

Counter-balance Bob ... cable in the street connecting both cars ... it wraps
around a huge wheel at the top of the hill ... same as the Fillmore Hill line in
San Francisco years ago.  Yes, I think it is three phase AC.  That is the only
case where I have ever seen two poles or two pantographs ... three phase give
two running speeds ... fast and slow ... either is constant.


I have been accused more than once of trying to educate.  You should have seen
the item I created for my high school class that began, in Spanish, Press 1 for
Spanish, 2 for English .... and went on and on about how there are far more
Spanish speaking people in the hemisphere than English speaking people.  One of
the brighter stars in the class said that next I would be charging tuition.
No.  Just try to raise the bar a little.

In the case of railways, I would like to get people to realize that, like
automobiles, it is a worldwide industry and we are part of a world.  That the
industry started here and in Germany and moved outward.  No place can you see
that movement better than in Britain where all the early cars had GE or
Westinghouse equipment, Peckham and Brill trucks.  J G Brill of Philadelphia,
with sales offices in London and Paris, outfitted the world.  Amazing that you
can still see that today in Portugal.  And today you see how the equipment is
coming back to the USA from elsewhere in the world.


So when Peter jumped on this, I wanted to expand the subject.  I try to answer
what I can.



On Feb 24, 2011, at 11:47 PM, robert netzlof wrote:

> --- On Thu, 2/24/11, Bill Robb <bill937ca at yahoo.ca> wrote:
>
> What is the track gauge? Looks to me to be rather narrow, maybe 1 meter?
>
>> Lisboa may be the only remaining place in the world (not
>> sure ... welcome the
>> correction) where you can ride a counter-balance trolley
>> line.  They are called
>> Elvador or Elvadoros in Portuguese.  There are three in
>> Lisboa, the Gloria, the
>> Lavra and the Bica.
>
> I'm puzzled. I see two overhead wires and two pantographs. But there also seems
>to be a slot in the pavement between the rails. Is this some sort of 3-phase
>system with two phases on the overhead and the third picked up by a plow?
>
>
> Bob Netzlof a/k/a Sweet Old Bob
>
>
>
>
